ESONIIC H110NEL MOTHERBOARD
Brand Esonic
Features
- Model: Esonic H110NEL
- Intel H110 Express Chipset
- Memory Support DDR4 2133/2400MHz SDRAM,2 * DDR3 DIMMs
- Storage- 4X SATA3.0 6Gb/s
- Socket LGA1151
₹4,600.00
₹5,400.00
Choose Quantity :
Product Information
Product Details
Specifications
| Processor | Support Intel® Socket 1151 for 6th/7th/8th/9th Generation Core™i7/ Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H110 Chipset |
| Memory Support | 2 * DDR4 2133/2400MHz DIMM, Dual channel memory architecture |
| Graphic | Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI / VGA ports |
| Slots | 1 x PCIe 3.0/2.0 x16 slot |
| Storage | 4 x SATA3.0 6Gb/s Ports |
| LAN | Realtek Chip, 1 x 100M(Optional 1000M) |
| Audio | Realtek Chip, ALC 662 6-channel audio |
| USB | 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board)6 * USB 2.0 port (4 at back panel, black, 2 at mid-board) |

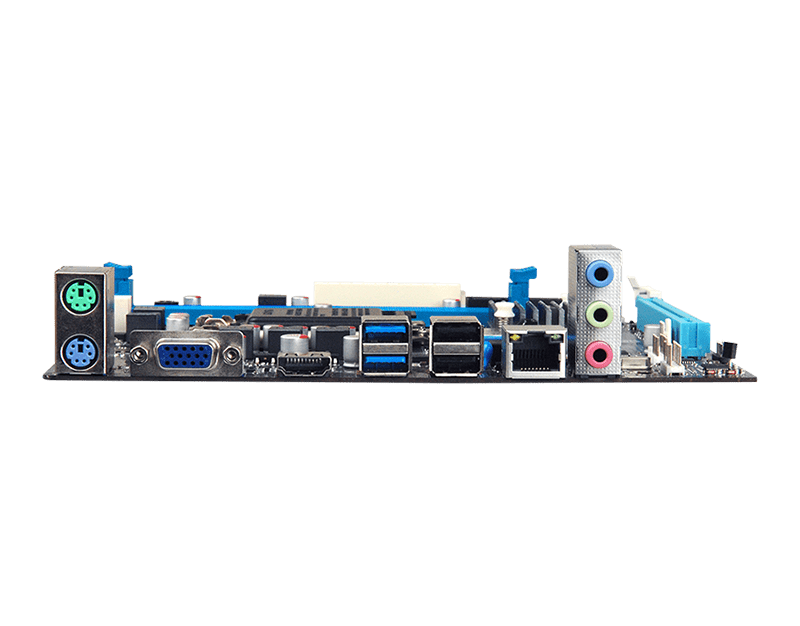

| Back Panel I/O | 1 x VGA Port1 x HDMI Port1 x LAN (RJ45) Port2 x USB 3.1 Gen 1 Ports(Blue) 4 x USB 2.0 Ports3 x flexible audio jacks |
| Internal I/O | 1 x USB 3.1 Gen 1 connector(19pin), supports 2*USB 3.1 Gen 1 ports1 x USB 2.0 connector, supports 2*USB 2.0 ports4 x SATA 6Gb/s Ports2 x 4 -pin CPU_FAN/SYS_FAN connectors1 x 24-pin ATX power connector1 x 4-pin 12V ATX Power connectors1 x F_Audio connector1 x Internal Speaker connector1 x F_Panel connector |
| Dimension | 195 x 168mm |
| Warranty Information | |
| Manufacturing Warranty | 1 Year |
