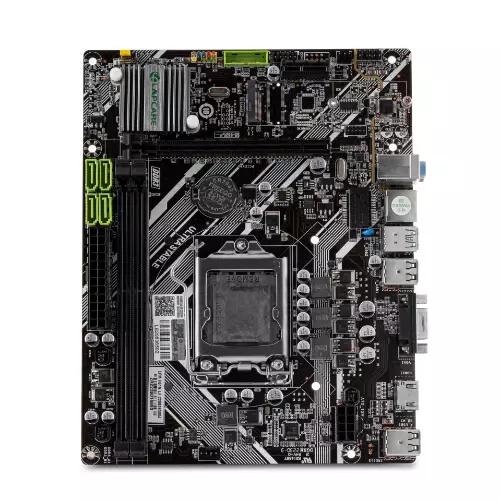

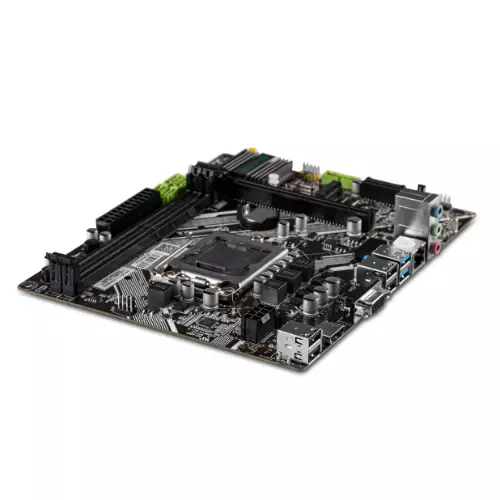

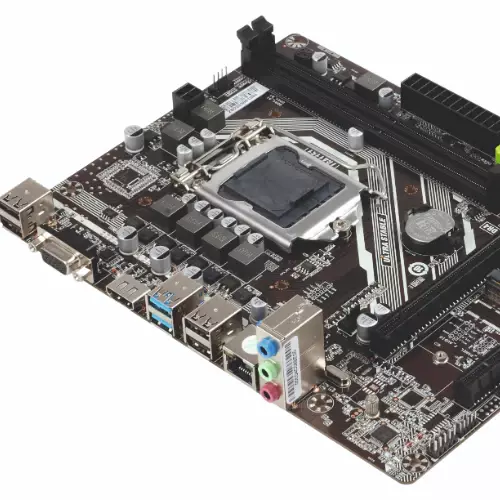

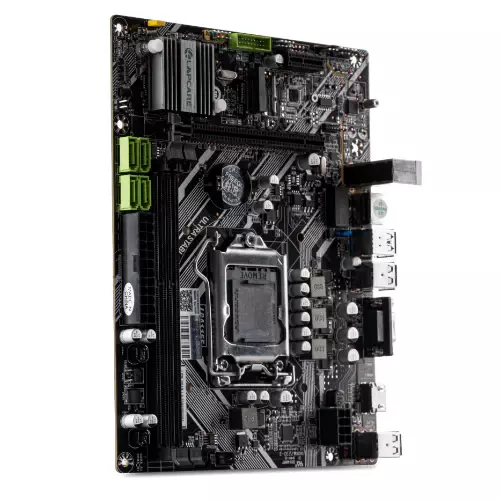

LAPCARE H110 MOTHERBOARD

Technical Specifications :

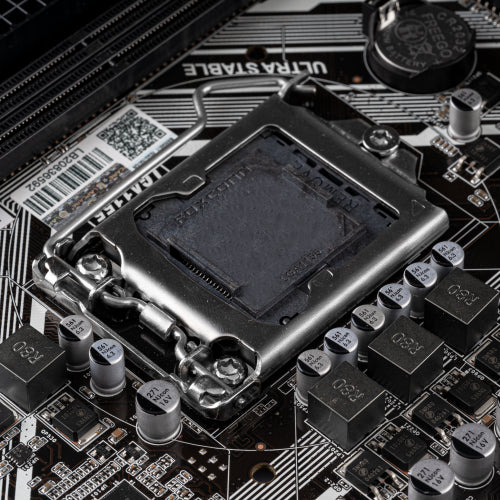

• Processor Support : Supports Intel® Socket 1151 for 7th/6th Generation Core™i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

• Chipset : Intel® H110 Chipset

• BIOS : AMI BIOS

• Memory Support : 2 x DDR4 2133 DIMM, Max. 32GB

• Slots : 1 x PCIe 3.0/2.0 x16 slot

• Storage : 4 x SATA 6Gb/s Ports

• LAN : Realtek Chip, 1 x 100M

• Audio : Realtek 662 6-channel audio

• USB : 4 x USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 x USB 2.0 port (4 at back panel, black, 2 at mid-board)

• Back panel : 1 x VGA Port, 1 x HDMI Port, 1 x LAN (RJ45) Port, 2 x USB 3.1 Gen 1 Ports(Blue), 4 x USB 2.0 Ports, 3 x flexible audio jacks

• Onboard Interface : 1 x USB 3.1 Gen 1 connector (19pin) supports 2 x USB 3.1 Gen 1 ports, 1 x USB 2.0 connector supports 2 x USB 2.0 ports, 4 x SATA 6Gb/s Ports, 1 x NVMe Slot, 1 x 4 -pin CPU_FAN/SYS_FAN connectors, 1 x 24-pin ATX power connector, 1 x 4-pin 12V ATX Power connectors, 1 x F_Audio connector, 1 x F_Panel connector

• Form Factor : Micro-ATX

•
